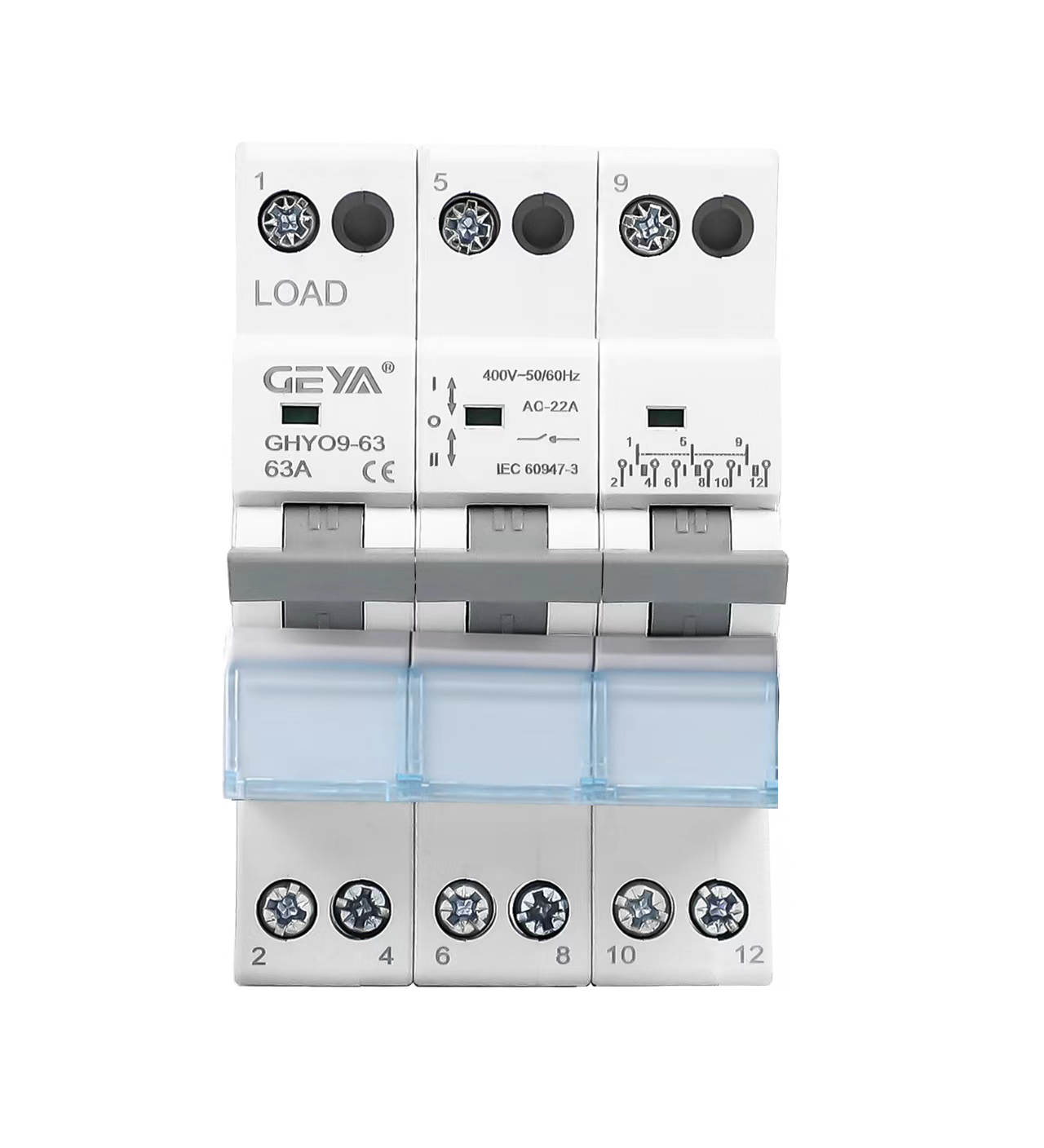

GEYA Changeover Breaker GYHO9-1P/2P/3P/4P
$3.50 – $15.00
Manual Transfer Switch has a high voltage range of 1-600VAC.
Adequate durability has been ensured by testing against the IEC 60947-3 standard in the specification of endurance requirements.
The manual transfer switch is operated via a handle fixed directly on the switch. The 16 to 125 Ampere sizes can be snapped-on to a DIN rail and the front fits in the 45 mm consumer unit cut-out.
Clearly marked power positions with indicator lights to easily understand which power source is being utilized.
Label window for easy and clear labeling of power sources.
Description
Specifications
| Rated Voltage | 200/400V~ |
| Rated Current | 125A |
| Rated Frequency | 50/60Hz |
| Number of Poles | 1,2,3,4P |
| Indicator | 1-0-2(1=Main power, 0= OFF, 2= Standby Power ON) |
| Short Circuit Current | 3000A |
| Mechanical Life | 10000 Cycles |
| IP rating | IP20 |
| Operating Temp | -5 ~ 50 C |
| Cable Size | Max 50mm^2 |
| Mounting | DIN 35mm Rail |
Dimensions
Additional information
| Number of Poles | 1P, 2P, 3P, 4P |
|---|
