Introduction
At Novusdash we are working with CAT6 Ethernet cables as primarily uses for IP cameras, Wifi APs, Workstations with Power over Ethernet (PoE) support. Our offering support solid copper or CCA (Copper Clad Aluminum) for reliable, high-speed data (1Gbps) and power delivery, minimizing interference.
Key types of infrastructure cables consist of :
- CAT6 UTP: Common for general use, offering good performance at 1GB speed up to 100 meters.
- CCA vs. Solid Copper: CCA (Copper Clad Aluminum) is budget-friendly, while Solid Copper offers superior transmission and PoE distance.
- CAT6a: It is the upgraded version of Cat6, offering double the bandwidth (500MHz vs. 250MHz) and supporting full 10 Gigabit Ethernet (10Gbps) speeds over the full 100-meter distance, whereas Cat6 can only reliably do 10Gbps up to about 55 meters.
- Cat7: Offers twisted pairs of shields that enhance noise resistance with a maximum bandwidth support of 600 MHz. These are recommended for surroundings with a lot of electromagnetic interference (EMI). Cat7 offers 10 Gbps Ethernet transmission speed over a maximum distance of 100 meters
- Cat8: It has a higher transmission speed of 25 Gbps or 40 Gbps but with maximum distance restrictions of up to 30 meters.

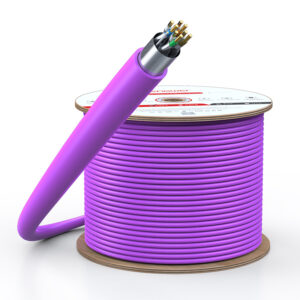

Ethernet Bulk Cable

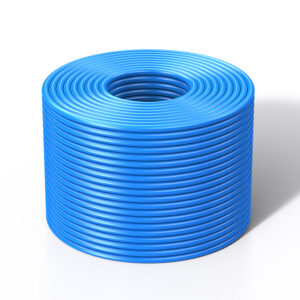

Cat6 Ethernet Bulk Cable
Key Features:
- 1000ft (305m)
- 23AWG Solid Pure Bare Copper Wire
- 550MHz
- Unshielded (U/UTP) or Shielded (SF/UTP) or Shielded (F/UTP)
- PVC or LSZH or PVC and LDPE Double Jackets ( Outdoor Direct Burial Cable )

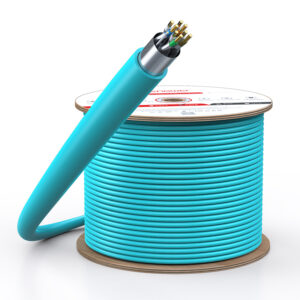

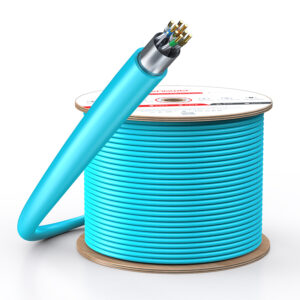

Cat6a Ethernet Bulk Cable
Key Features:
- 1000ft (305m)
- 23AWG Solid Pure Bare Copper Wire
- 750MHz
- Unshielded (U/UTP) or Shielded (S/FTP) or Shielded (U/FTP)
- PVC OR LSZH
Cat7 Ethernet Bulk Cable
Key Features:
- 1000ft (305m)
- 23AWG Solid Pure Bare Copper Wire
- 1000MHz
- Shielded (S/FTP)
- PVC OR LSZH
Cat8 Ethernet Bulk Cable
Key Features:
- 1000ft (305m)
- 22AWG Solid Pure Bare Copper Wire
- 2000MHz
- Shielded (S/FTP)
- PVC OR LSZH
Fiber Cables

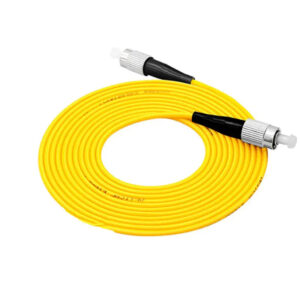

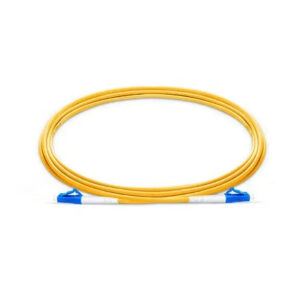

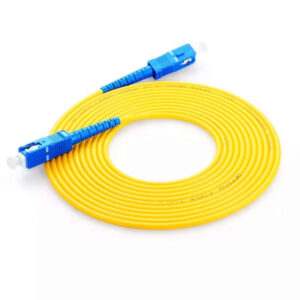

Single mode multimode fiber jumper
Key Features:
- Low insertion loss, high return loss
- Single mode 9/125 um, Wavelength 1310/1550 nm

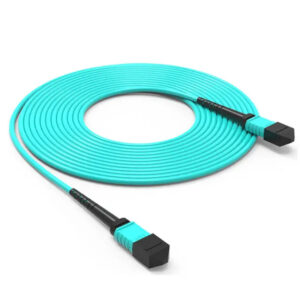

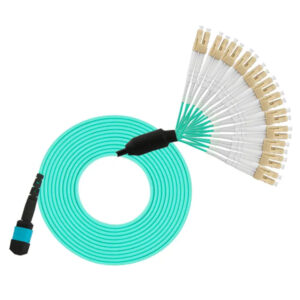

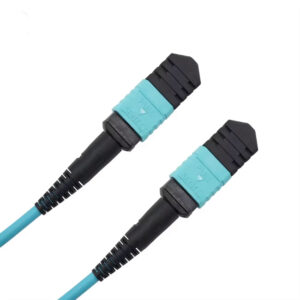

MPO Fiber Cables
Key Features:
- Low insertion loss, high return loss
- Data center specific, supports high transmission rate of 40/100/400/800G

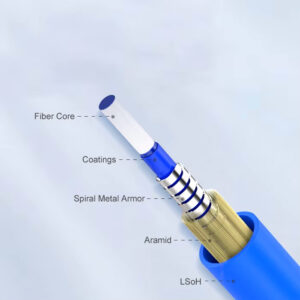

Optical Armored Patch cord
Key Features:
- Low insertion loss, high return loss
- Soft and flexible, easy to terminate and convenient for cable laying and construction

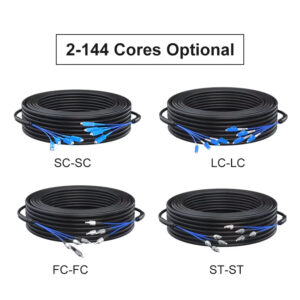

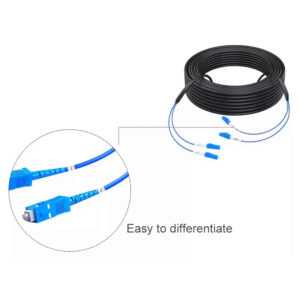

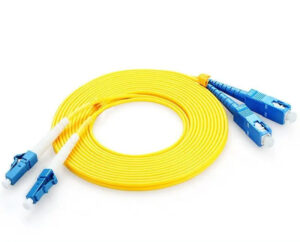

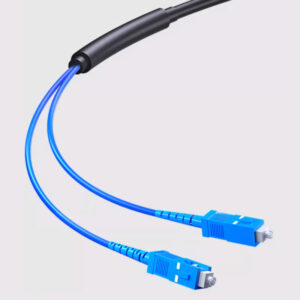

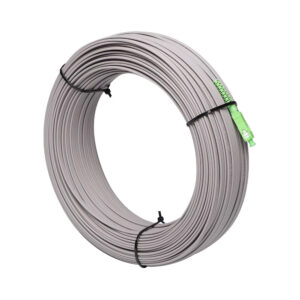

Drop cable Patch cord
Key Features:
- Low insertion loss, high return loss
- Single mode 9/125 um, Wavelength 1310/1550 nm

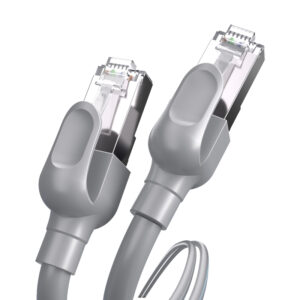

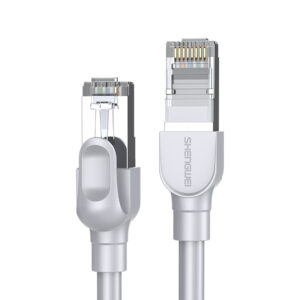

Ethernet Patch Cord

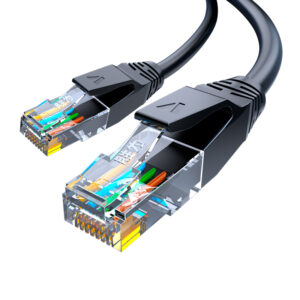

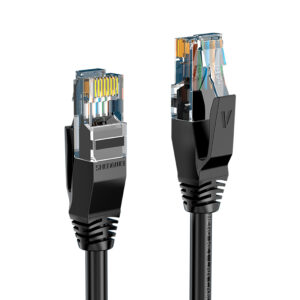

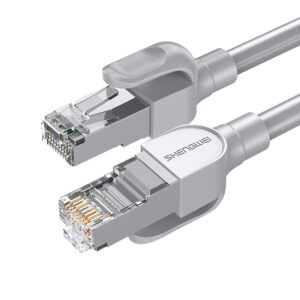

Cat6 Ethernet Patch Cord
Key Features:
- 1 Gigabit
- FTP or UTP
- LSZH or PVC
- Oxygen-Free Copper Network Patch Cord

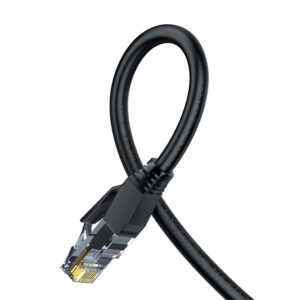

Cat6a Ethernet Patch Cord
Key Features:
- 10 Gigabits FTP
- LSZH
- Oxygen-Free Copper Network Patch Cord

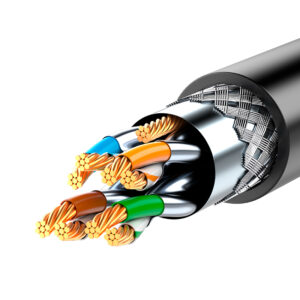

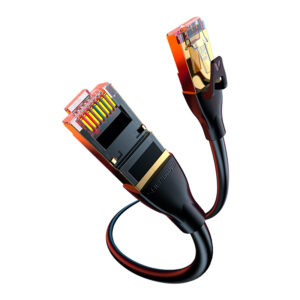

Cat7 Ethernet Patch Cord
Key Features:
- 10 Gigabits FTP
- LSZH
- Oxygen-Free Copper Network Patch Cord

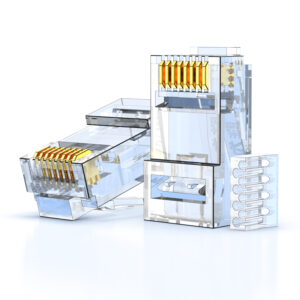

RJ45 Connector

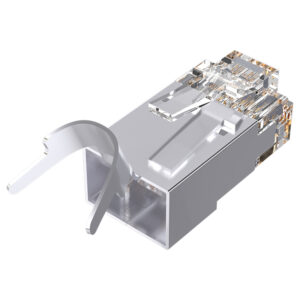

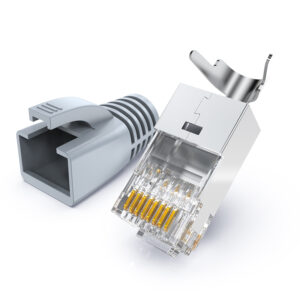

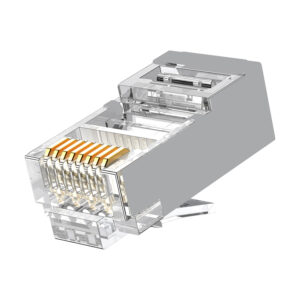

Cat 6 FTP RJ45 Connector
Key Features:
- Terminates 4-pair, 23AWG Solid or Stranded Unshielded Twisted Pair Patch Cable
- Compatible with Cable Jacket Diameters from 6.5 to 7mm and Conductor Wire Sizes up to 1.1mm Bare Copper Wire
- Works with Most Available RJ45 Crimp Tools
- Contacts Plated with 50 Microinches of Gold for Superior Performance
- Unshielded Cat6 RJ45 Plug with Load-Bar for Easy Termination

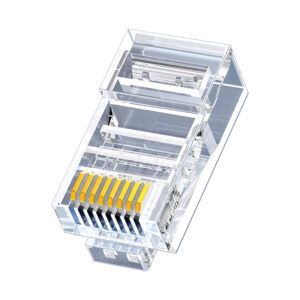

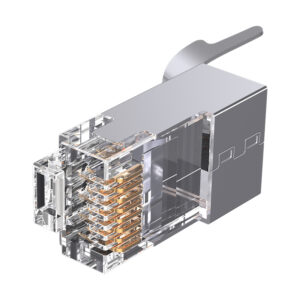

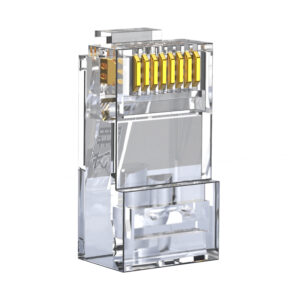

Cat6a FTP/UTP RJ45 Connector
Key Features:
- Fully Backwards Compatible with Cat5e or Cat6
- 23-26 AWG Solid or Stranded Wire with OD Between 6.0 and 7.5mm
- IDC Modules with T568A or T568B Wiring for Continuous Network
- Superior Signal Quality with All-copper Gold-plated Terminals ＆ PCB Board
- Reusable, Disassemble It and Try Again
- 500Mhz & 10Gbase-T for Ultra-high-speed Applications Such As HDBase-T Graphics (UTP only)

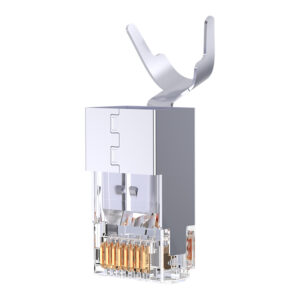

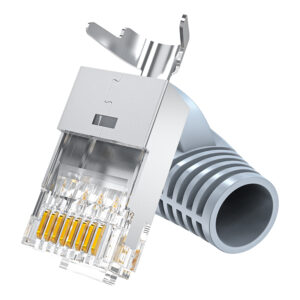

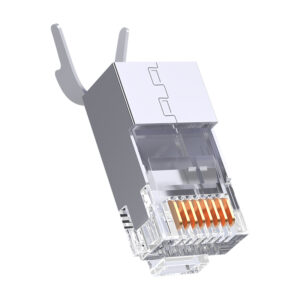

Cat7 FTP RJ45 Connector
Key Features:
- Tool-Free for Fast and Easy Installation, Reusable
- 22-23 AWG Solid
- 750Mhz & 10Gbase-T for Ultra-high-speed Applications Such As HDBase-T Graphics
- Superior Signal Quality with All-copper Gold-plated Terminals ＆ PCB Board
- Solid Zinc Alloy Housing & Screw-on Metal Strain Relief Boot Suppress EMI, NEXT, and AXT

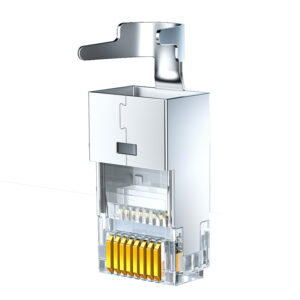

Cat8 FTP RJ45 Connector
Key Features:
- Tool-Free for Fast and Easy Installation, Reusable
- 22 AWG Solid or Stranded Wire with OD Between 7.0 and 8.5mm
- 2000Mhz & 25/40Gbase-T for Ultra-high-speed Applications Such As HDBase-T Graphics
- Superior Signal Quality with All-copper Gold-plated Terminals ＆ PCB Board
- IDC Modules with T568A or T568B Wiring for Continuous Network
Networking Accessories
Patch Panel
Unshielded Network Telephone Distribution Frame Module, No Socket, Empty Distribution Frame
Product Features:
- 24 Port Modular Distribution Frame
- Rear dust cover design, maintenance free
- High quality cold-rolled steel plate frame with surface painting process
- High strength Phosphor bronze + polycarbonate (PC) wiring column
- Thickened gold-plated terminals for more stable connection

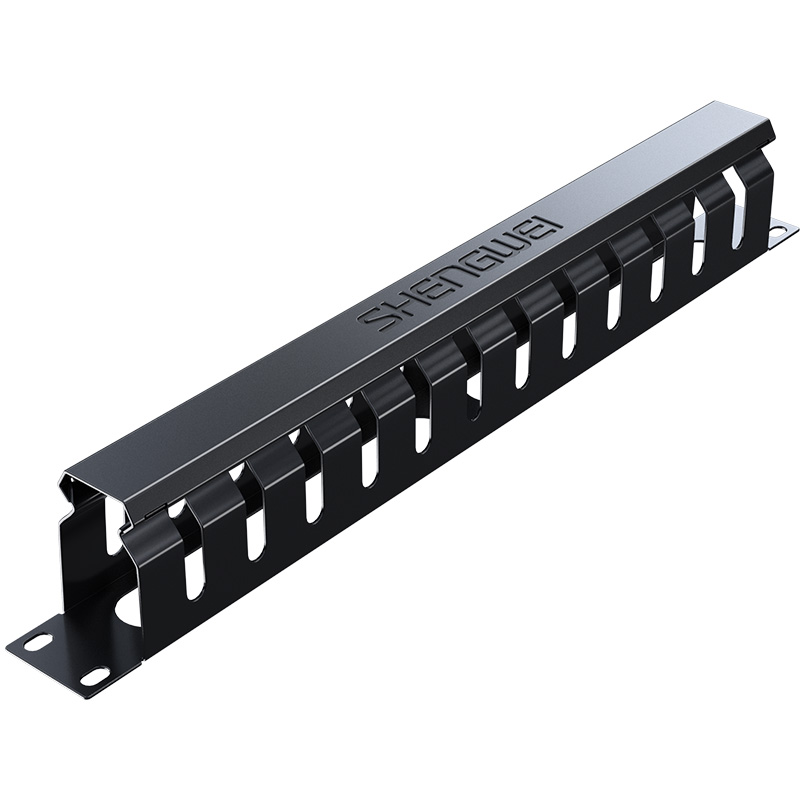

24 Port Cable Management
thickened cold-rolled steel plate slot with cabinet screws suitable for 19 inch cabinet network cable storage device
Product Features:
- Thickened, high-capacity design
- Fully rounded to protect the cable sheath and curvature
- Standard 19 inch installation structure with strong applicability and detachable cover plate
- High quality cold rolled steel plate with surface paint treatment
KVM Extenders
This advanced KVM extender transmits high-definition video, keyboard/mouse signals, and audio over long distances, allowing complete workstation control from a remote location. It can support 1 transmitter with multiple receivers over TCP/IP communication.

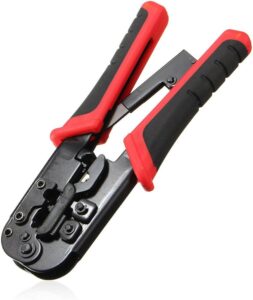

Mesh pliers with punching tools
Equip your networking toolkit with our high-performance CAT6 tools, designed for precision and durability.
A reliable, heavy-duty solution featuring integrated punching tools for all-in-one efficiency during CAT6 installations.
GB connectors
- Network Pure Copper Straight-through Connector (Gigabit)
- One-in-two straight-through head Connector
- Waterproof straight-through head Connector

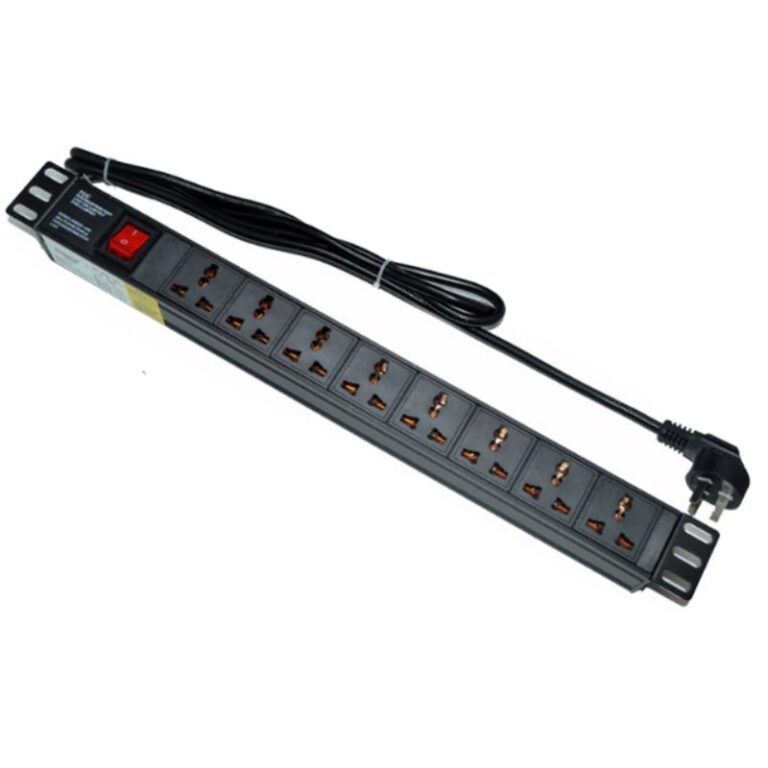

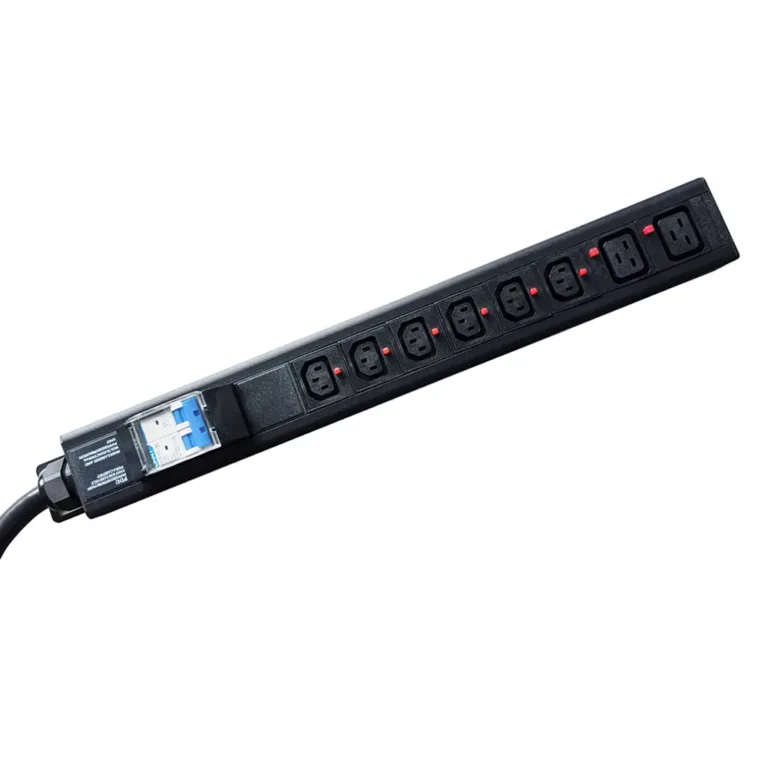

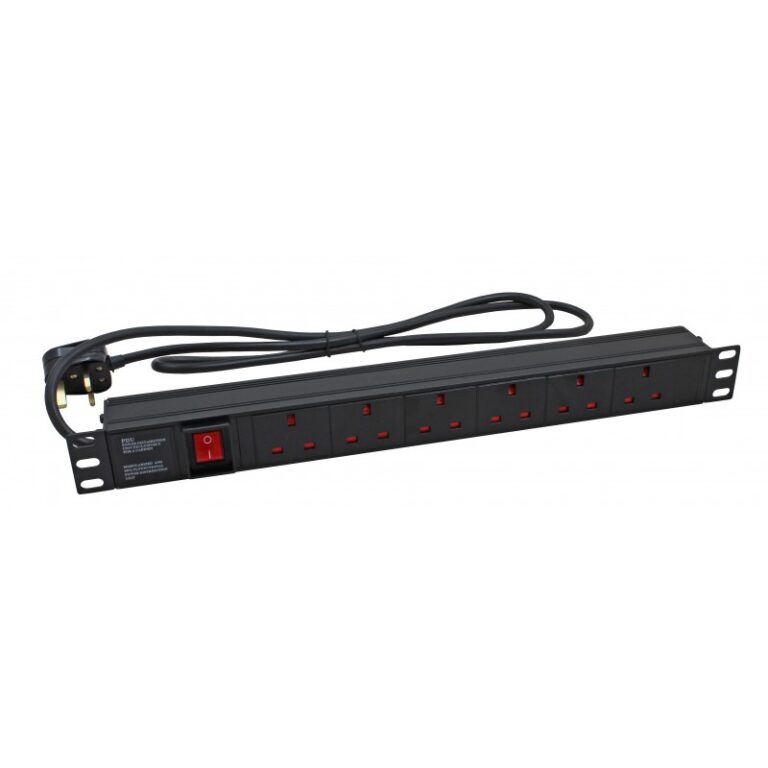

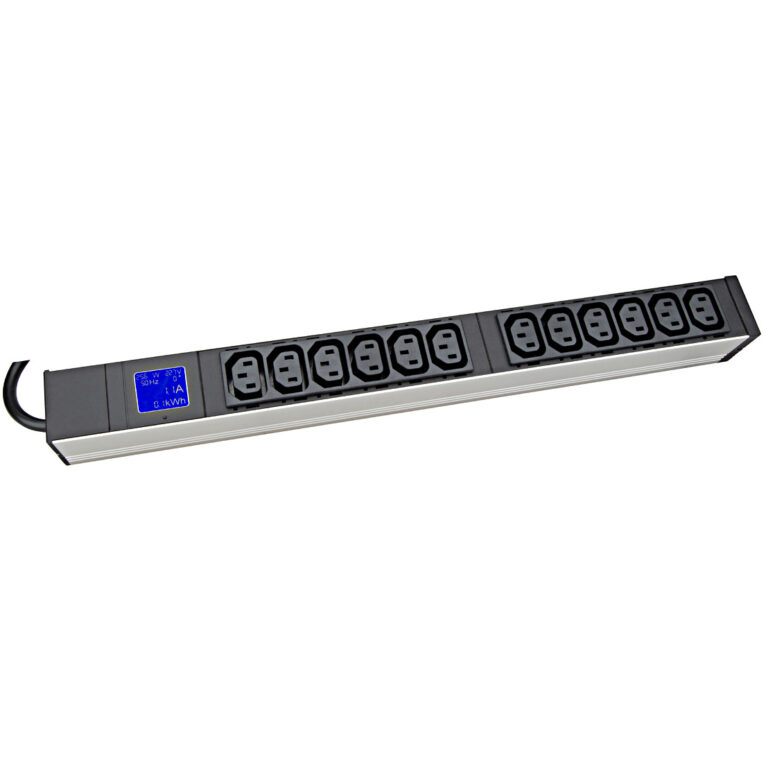

Power Distribution Units (PDU)

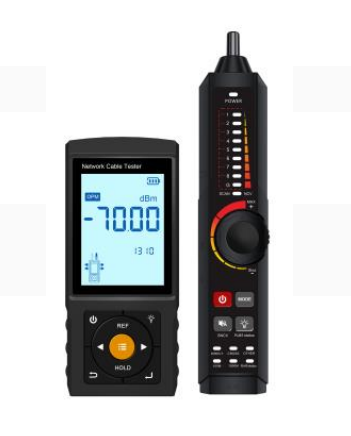

Cable testers
Cable tester with wire tracking
Features :
- 3 inch screen, screen size 48*65mm
- Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.
- Advanced UTP cable test, test UTP cable’s sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector.
- RJ45 cable TDR test, test cable’s length, max 600 meter
- Port Flash, can search the switch port which connect the meter, and detect the connected network port (100/ 1000M)
- PoE detector, support IEEE802.3af/at/bt supply power protocol
- PSE IN and OUT, measure the PSE power supply voltage and power
- Optical power meter and Visual fault locator (Optional)
Cable tester with wire tracking and TDR functions
Features :
- 2.4 inch TFT-LCD screen, 320×240 Resolution
- Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.
- Advanced UTP cable test, test UTP cable’s sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault
point of RJ45 cable connector. - RJ45 cable TDR test, test cable quality, length and attenuation.
- Port Flash, can search the switch port which connect the meter.
- PING test, check whether IP camera or other network equipment’s Ethernet port is working normally, the IP address whether is
correct. - IP Scan, quickly find the IP address of the IP camera or other network equipment which connected to the meter.
- Link status, quickly identify the connected network port (10/100/ 1000M) and duplex mode (full duplex / half duplex)
- 3.7 V /1800mAh Lithium Ion Battery, after 3 hours charging, working time lasts 16 hours

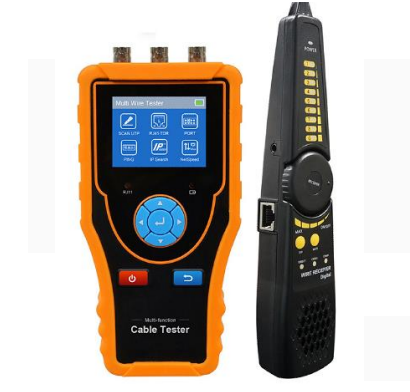

Cable tester with wire tracking and TDR functions and cable faulty
Features :
- 2.4 inch TFT-LCD screen, 320×240 Resolution
- Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.
- Advanced UTP cable test, test UTP cable’s sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault
point of RJ45 cable connector. - RJ45 cable TDR test, test cable quality, length and attenuation.
- HD Coaxial video level meter, can detect the TVI/CVI/AHD/CVBS signal peak value, SYNC value and burst value.
- Port Flash, can search the switch port which connect the meter.
- PING test, check whether IP camera or other network equipment’s Ethernet port is working normally, the IP address whether is
correct. - IP Scan, quickly find the IP address of the IP camera or other network equipment which connected to the meter.
- Link status, quickly identify the connected network port (10/100/ 1000M) and duplex mode (full duplex / half duplex)
- TDR cable test 2.0, can test break point and short-circuit of cat 6e/5e (4 pairs), power line, BNC cable and Telephone line, etc. the Max. 1.2km length
- 3.7 V /1800mAh Lithium Ion Battery, after 3 hours charging, working time lasts 16 hours
